GraphqlOperation

GraphqlOperation shows one proposed GraphQL capability - a query, mutation, or subscription - so a plan that introduces or changes a schema can be reviewed on the contract: what the operation takes, what it returns, and what running it actually looks like.

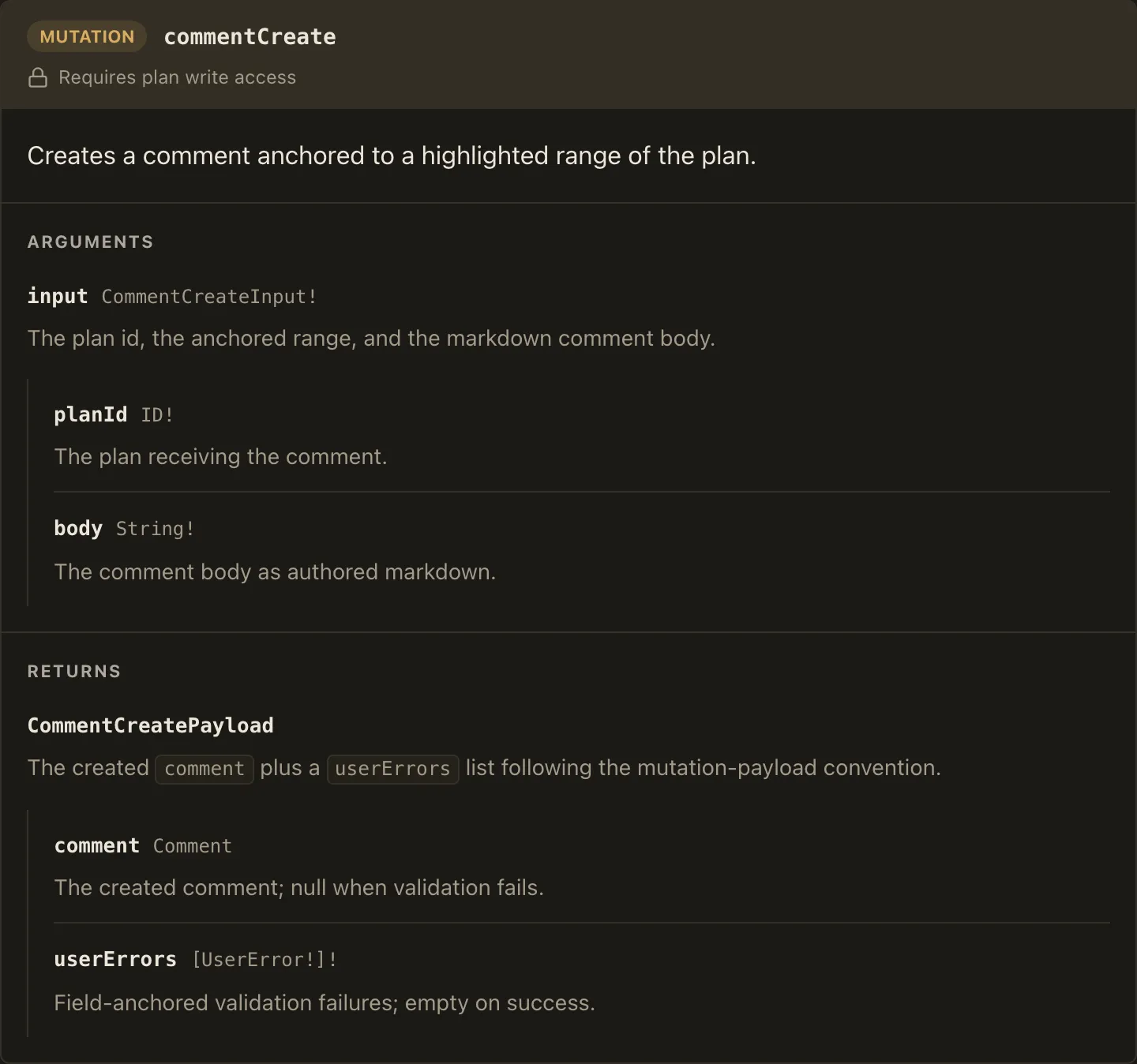

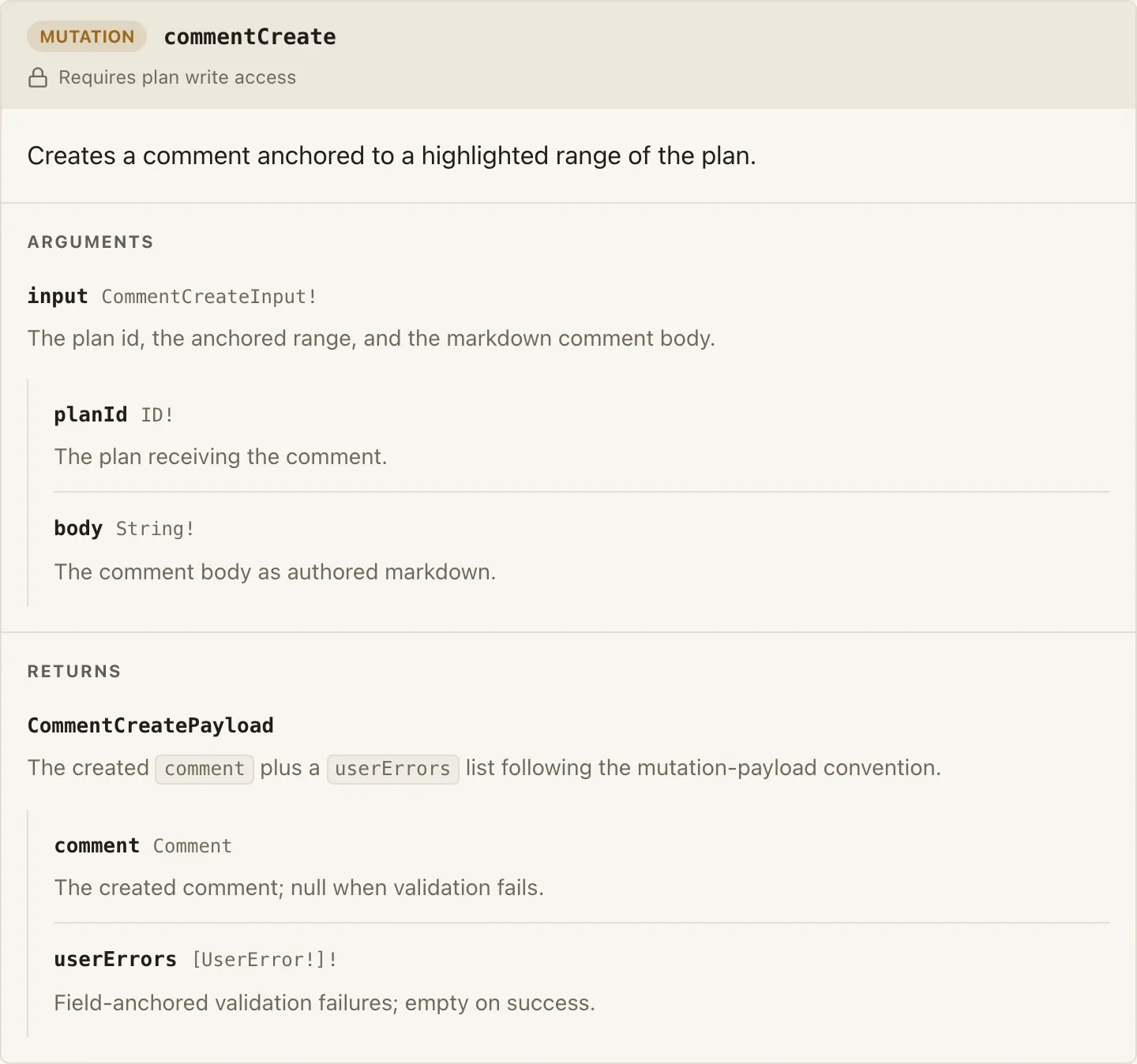

How it looks

When to use it

Use GraphqlOperation when a plan proposes or changes a query, mutation, or subscription and the reviewer should judge its arguments, return shape, and an executable example with variables and response.

When not to use it

• Loose GraphQL samples with no schema contract to review - use a plain graphql fence
• Whole-schema SDL dumps - reference sites do not show SDL per entry, and neither does this card; describe type definitions in prose or a fence

Use cases

• Propose a new mutation with its input, payload convention, and an executable example operation
• Enumerate a planned schema surface compactly, since a header-only operation with just kind and name is valid

Usage

<GraphqlOperation kind="mutation" name="commentCreate" access="Requires plan write access">

Creates a comment anchored to a highlighted range of the plan.

<Argument name="input" type="CommentCreateInput!">

The plan id, the anchored range, and the markdown comment body.

</Argument>

<Field in="input" name="planId" type="ID!">

The plan receiving the comment.

</Field>

<Field in="input" name="body" type="String!">

The comment body as authored markdown.

</Field>

<Returns type="CommentCreatePayload">

The created `comment` plus a `userErrors` list following the mutation-payload convention.

</Returns>

<Field in="payload" name="comment" type="Comment">

The created comment; null when validation fails.

</Field>

<Field in="payload" name="userErrors" type="[UserError!]!">

Field-anchored validation failures; empty on success.

</Field>

<Operation>

```graphql
mutation commentCreate($input: CommentCreateInput!) {
  commentCreate(input: $input) {
    comment {
      id
    }
    userErrors {
      field
      message
    }
  }
}
```

</Operation>

<Variables>

```json
{ "input": { "planId": "pln_42", "body": "Keep the retry budget explicit." } }
```

</Variables>

<Response label="Success">

```json
{ "data": { "commentCreate": { "comment": { "id": "cmt_8f3a" }, "userErrors": [] } } }
```

</Response>

<Response label="Validation error">

```json
{
  "data": {
    "commentCreate": {
      "comment": null,
      "userErrors": [{ "field": ["input", "body"], "message": "Body is required." }]
    }
  }
}
```

</Response>

</GraphqlOperation>

Authoring

Attributes

Attribute	Type	Required	Behavior
kind	enum: query mutation subscription	Yes	The spec’s operation type; renders the kind badge beside the name.
name	string (non-empty)	Yes	The operation name, rendered monospace.
access	string	No	Access requirement (scopes, permissions), rendered as a lock-annotated line.
deprecated	bare boolean	No	Renders a Deprecated badge and strikes the name.
deprecationReason	string	No	The @deprecated reason, shown with the badge; invalid without deprecated.

The markdown body before the scoped children is the operation’s description.

Argument

Each Argument documents one argument: a required non-empty name and a required non-empty type rendered literally - GraphQL’s ! and [...] markers convey requiredness, so there is no separate required flag - plus a markdown body description. Duplicate argument names are rejected.

Field

Each Field expands one level of the input or payload shape: a required in (input or payload) that seats it under Arguments or Returns, a required name and literal type (GraphQL’s ! and [...] markers convey requiredness), an optional default, and a markdown body. Duplicate in-plus-name identities are rejected; deeper nesting belongs to prose, not the card.

Returns

At most one Returns names the required non-empty return type and carries a markdown walkthrough of the payload fields.

Operation, Variables, and Response

Operation and Variables appear at most once; Response repeats with an optional label so a success example can sit beside the validation error that teaches how userErrors behaves. Each takes exactly one fence of its required language - an executable graphql operation, json variables, and json responses - and all render together under one labeled Example section. Variables without an Operation beside it is rejected, and every fence flows through the standard highlighting pipeline.

Component-specific violations report positional diagnostics, including a wrong-language or missing fence, duplicate arguments, repeated single-instance children, a deprecationReason without deprecated, and headings, footnotes, or nested components inside scoped-child bodies.

Argument, Field, Returns, Operation, Variables, and Response outside a declaring GraphqlOperation stay unknown components.
