GrpcMethod

GrpcMethod shows one proposed RPC on a service, headed by the literal proto signature - rpc WatchComments(WatchCommentsRequest) returns (stream Comment) - so a plan that introduces or changes a gRPC surface is reviewed on what the .proto would actually say.

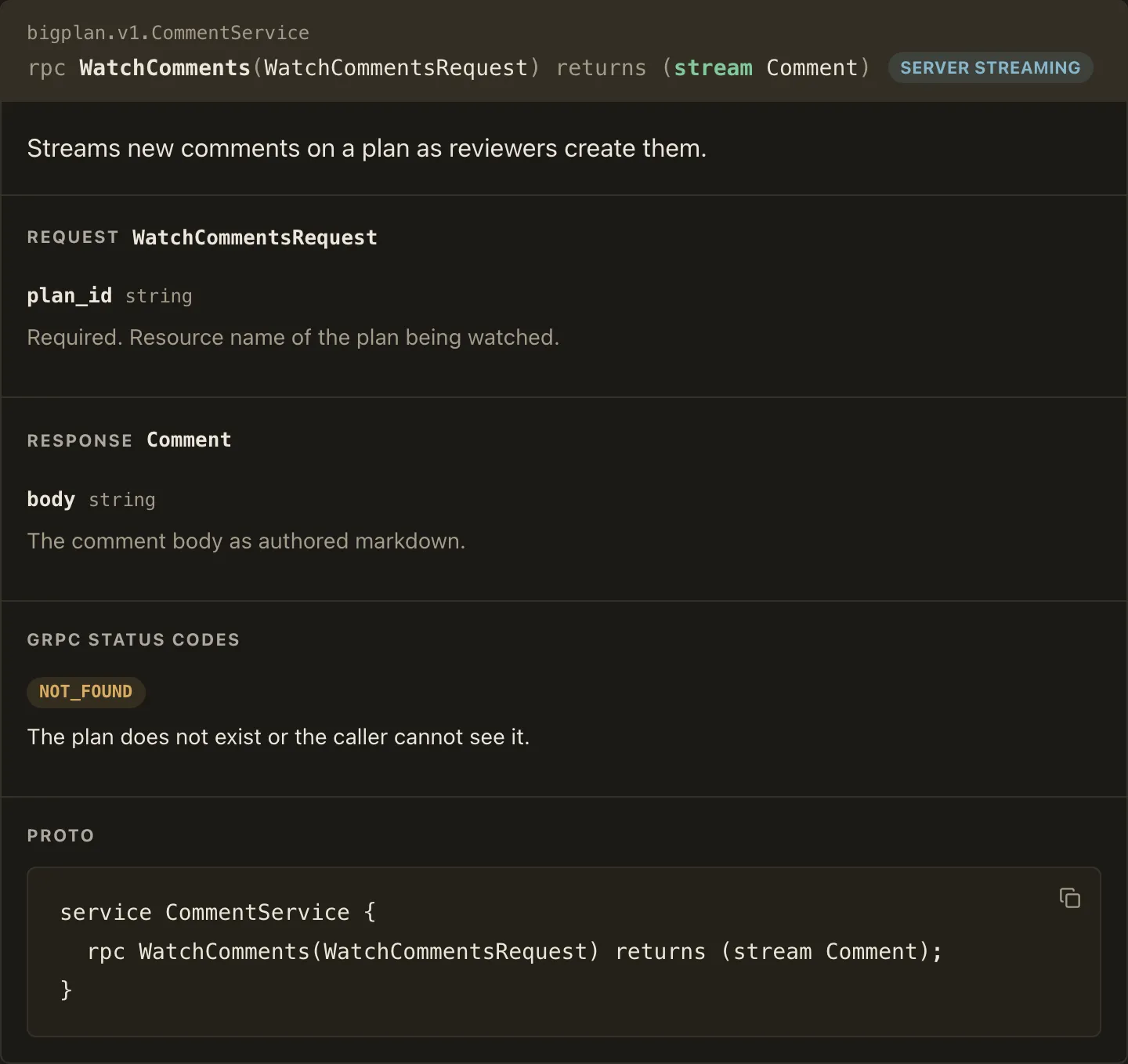

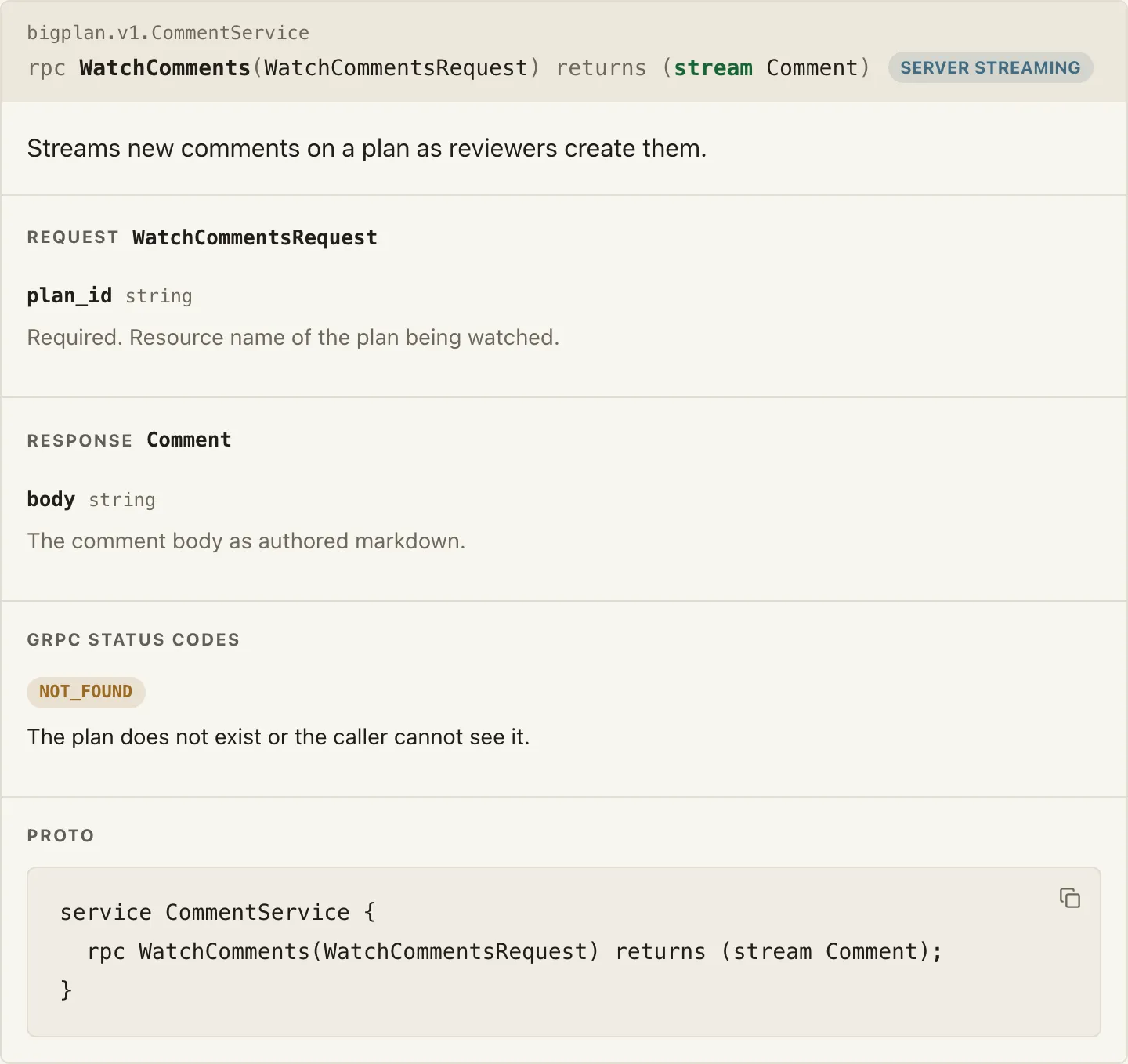

How it looks

When to use it

Use GrpcMethod when a plan proposes or changes an RPC and the reviewer should judge the signature, the streaming kind, the request and response fields, and the failure codes.

When not to use it

• Loose proto samples with no method contract to review - use a plain fence
• Whole-service or message-heavy schema dumps - the card documents one method; larger proto excerpts belong in prose or fences

Use cases

• Propose a streaming RPC where the streaming kind must be unmissable - the signature places the stream keyword and the badge names the kind, which even Google’s reference fails to surface
• Document the canonical google.rpc.Code failures reviewers usually have to ask about

Usage

<GrpcMethod service="bigplan.v1.CommentService" name="WatchComments" request="WatchCommentsRequest" response="Comment" kind="serverStreaming">

Streams new comments on a plan as reviewers create them.

<Field in="request" name="plan_id" type="string">

Required. Resource name of the plan being watched.

</Field>

<Field in="response" name="body" type="string">

The comment body as authored markdown.

</Field>

<Error code="NOT_FOUND">

The plan does not exist or the caller cannot see it.

</Error>

<Example label="Request">

```json
{ "plan_id": "plans/pln_42" }
```

</Example>

<Example label="Stream">

```text
comment: cmt_8f3a
comment: cmt_901b
```

</Example>

<Proto>

```proto
service CommentService {
  rpc WatchComments(WatchCommentsRequest) returns (stream Comment);
}
```

</Proto>

</GrpcMethod>

Authoring

Attributes

Attribute	Type	Required	Behavior
service	string (non-empty)	Yes	Fully qualified service name, rendered as the card’s caption.
name	string (non-empty)	Yes	The method name inside the signature.
request	string (non-empty)	Yes	Request message type inside the signature.
response	string (non-empty)	Yes	Response message type inside the signature.
kind	enum: unary serverStreaming clientStreaming bidiStreaming	No (default unary)	Places the tinted stream keywords and renders the streaming badge.
deprecated	bare boolean	No	Renders a Deprecated badge and strikes the method name.

The markdown body before the scoped children is the method’s description. A method with no description or scoped children renders as a compact header-only service entry.

Field

Each Field documents one message field: a required in (request or response) that groups it into the matching section - each section names its message type beside the label, keeping the signature’s RPC-to-message model alive - a required non-empty name, an optional type, and a markdown body. Proto3 has no required label, so requiredness stays prose in the description (“Required. …”), matching the ecosystem. Duplicate in-plus-name identities are rejected.

Error

Each Error documents one transport-level failure under the gRPC status codes section: a required code from the canonical google.rpc.Code error names except OK (NOT_FOUND, PERMISSION_DENIED, RESOURCE_EXHAUSTED, and the rest) and a markdown body explaining when it happens. Duplicate codes are rejected.

Example

Example repeats with an optional label and exactly one fenced code block with a declared language, rendered together under one labeled Example section - typically a json request payload beside a text stream trace, since a stream’s behavior over time is what streaming-unfamiliar reviewers need to see.

Proto

At most one Proto carries exactly one proto fence - the raw-source secondary affordance behind the structured card. Author the surrounding service block rather than repeating the header’s signature line, so the fence adds context instead of duplication.

Component-specific violations report positional diagnostics, including an unknown error code, duplicate field or error identities, a second Proto or a wrong-language fence, and headings, footnotes, or nested components inside scoped-child bodies.

Field, Error, Example, and Proto outside a declaring GrpcMethod stay unknown components.
